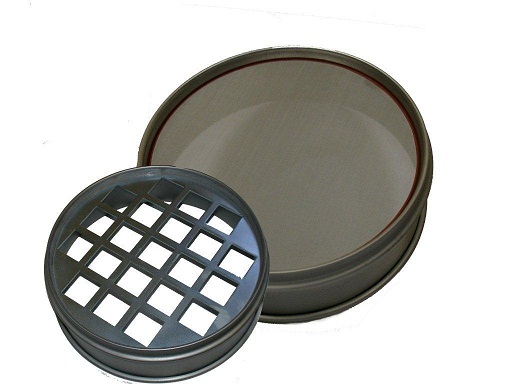

LABORATORY TEST SIEVES / SCREENS

The 75mm, 100mm and 200mm test sieves that are supplied with full-depth (50mm) stainless steel frames, half height (25mm) frames and brass frames also available.

The 300mm and 450mm test sieves are supplied with full depth (100mm) mild steel frames, they are also available in Stainless Steel frames. We also manufacture RHPP (round hole plated) apertures.

Mesh apertures are manufactured of stainless steel and plated (SHPP) apertures are manufactured of electroplated mild steel.

 A full range of diamond sieves in 100mm and 200mm diameter are also supplied.

All apertures from 20um (Micron) up to 212um (Micron) has protective backing of 1.0mm as standard.



All products are ISO certified (SABS ISO 3310-1-2000 & Part 2-1999).



Features:

  • All test sieves individually calibrated with calibration certificate supplied
  • True sizes
  • 75mm test sieves, apertures available up to 53,0mm
  • 100mm test sieves, apertures available up to 70,0mm
  • 200mm test sieves, apertures available up to 120,0mm
  • 300mm test sieves, apertures available up to 150,0mm
  • 450mm test sieves, apertures available up to 250,0mm

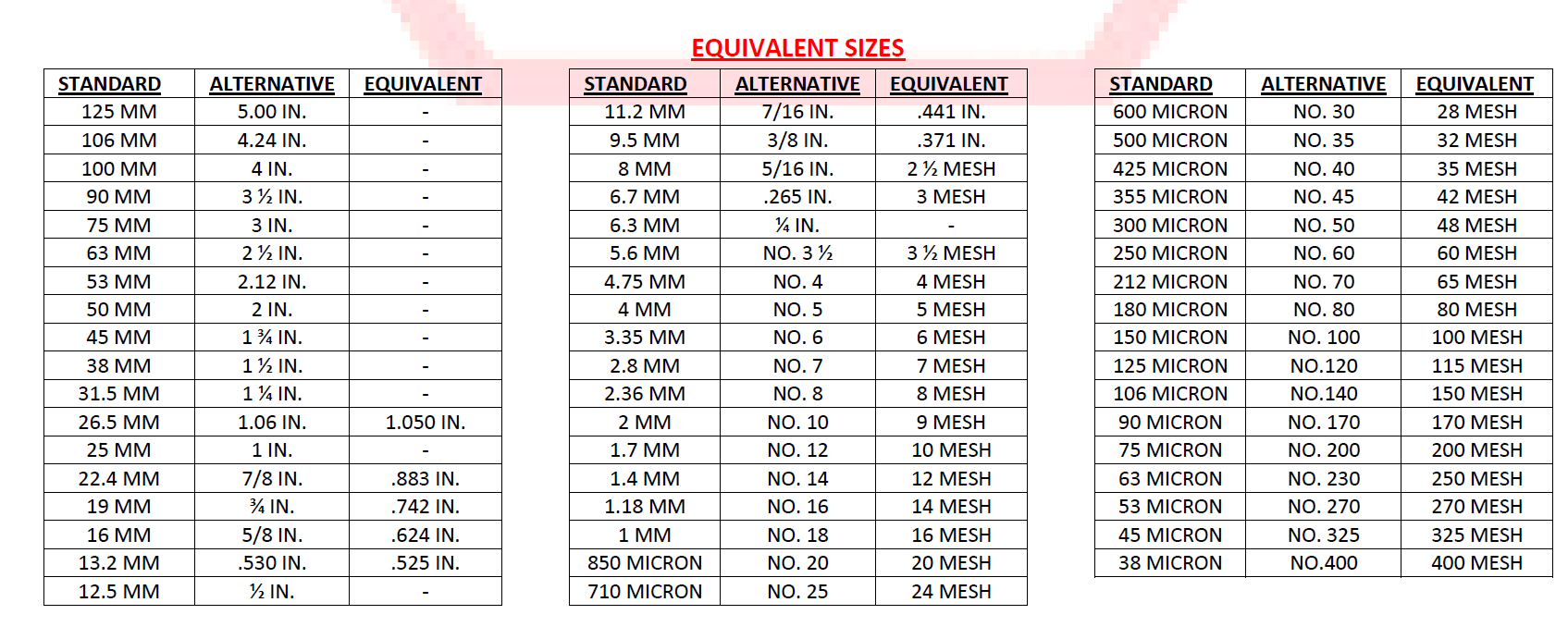

Mesh Sizes Plate (SHPP) Sizes
20 micron (0.020mm)

25 micron (0.025mm)

32 micron (0.032mm)

38 micron (0.038mm)

45 micron (0.045mm)

50 micron (0.05mm)

53 micron (0.053mm)

63 micron (0.063mm)

75 micron (0.075mm)

80 micron (0.08mm)

90 micron (0.09mm)

100 micron (0.1mm)

106 micron (0.106mm)

125 micron (0.125mm)

150 micron (0.15mm)

160 micron (0.16mm)

180 micron (0.18mm)

200 micron (0.2mm)

212 micron (0.212mm)

250 micron (0.25mm)

300 micron (0.3mm)

315 micron (0.315mm)

355 micron (0.355mm)

400 micron (0.4mm)

425 micron (0.425mm)

500 micron (0.5mm)

600 micron (0.6mm)

710 micron (0.71mm)

800 micron (0.8mm)

850 micron (0.85mm)

1.0 mm (1000um)

1.18 mm (1180um)

1.25 mm (1250um)

1.4 mm (1400um)

1.5 mm (1500um)

1.6 mm (1600um)

1.7 mm (1700um)

1.8mm (1800um)

2.0 mm (2000um)

2.36 mm (2360um)

2.5 mm (2500um)

2.8 mm (2800um)

3.0 mm (3000um)

3.15mm (3150um)

3.35 mm (3350um)

3.5 mm (3500um)

4.0 mm (4000um)

4.75 mm (4750um)

5.0 mm (5000um)

5.6mm (5600um)

6.0 mm (6000um)

6.3 mm (6300um)

6.7 mm (6700um)

8.0 mm (8000um)

9.5 mm (9500um)

11.2 mm (11200um)

13.2 mm (13200um)

16.0 mm (16000um)

19.0mm (19000um)

3.5 mm (3500um)

4.75 mm (4750um)

5.0 mm (5000um)

5.6 mm (5600um)

6.3 mm (6300um)

6.5 mm (6500um)

6.7 mm (6700um)

7.0 mm (7000um)

7.1 mm (7100um)

8.0 mm (8000um)

9.0mm (9000um)

9.5 mm (9500um)

10.0 mm (10000um)

11.2 mm (11200um)

12.0 mm (12000um)

12.5 mm (12500um)

13.2 mm (13200um)

14.0 mm (14000um)

15.0 mm 915000um)

16.0 mm (16000um)

18.0 mm (18000um)

19.0 mm (19000um)

20.0mm (20000um)

22.4 mm (22400um)

25.0mm (25000um)

26.5 mm (26500um)

28.0 mm (28000um)

30.0 mm (30000um)

31.5 mm (31500um)

35.0 mm 935000um)

37.5 mm (37500um)

40.0 mm (40000um)

45.0 mm (45000um)

50.0 mm (50000um)

53.0 mm (53000um)

60.0 mm (60000um)

63.0mm (63000um)

65.0 mm (65000um)

70.0 mm (70000um)

73.0 mm (73000um)

75.0 mm (75000um)

80.0 mm (80000um)

85.0 mm (85000um)

90.0 mm (90000um)

100.0 mm (100000um)

125.0 mm (125000um)

130.0 mm (130000um)

150.0 mm (150000um)

180.0 mm (180000um)

200.0 mm (200000um)





















LID & RECEIVER



WET WASHING RECEIVER



WET WASHING TEST SIEVE



BRASS TEST SIEVE



SIEVE STAND
