The general purpose laboratory furnaces are ideal for a wide range of applications. The units are robustly constructed and fitted with high quality components for reliable operation. For special applications please contact our technical department for advice.
FEATURES
• Electronic P.I.D temperature control with digital indication of set and process value
• Solid state switching for improved reliability and rapid response
• Independent over temperature safety system
• Independent sensors for control and safety using type n duplex thermocouple
• Maximum continuous operating temperature 1150°C
• Easily replaceable side wall mounted slab elements
• Automatic cut out switch on door opening deactivates element
• Door mounted temperature sampling port for easy validation, thus
retaining heat inside the chamber
• Robust construction with slide out control panel for ease of service
• Available in 9 litre and 30 litre capacity
• Optional programmable controllers
• High thermal efficiency ceramic insulation coupled to double skin construction ensures cool to touch exterior panels
• Out and up door with vertically counterbalanced action protects operator from potential burns
• Ashing option available
NOTE
• Prior to ordering please advise on application

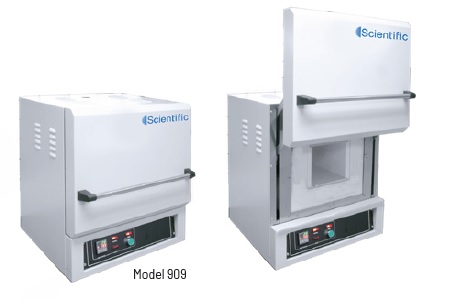

9L Muffle Furnace:
– Power: 3300W
– Voltage: 230V/50Hz
– Packing: 850 x 950 x 910mm
– Unit: 570 x 660 x 695mm
– Nett Weight: 50kg
– Gross Weight: 60kg
– Shipping Volume: 0.7m3
– Chamber Dimensions: 195 x 300 x 155mm
– Chamber Volume: 9L
– Max Continous Temp: 1150C
– Max Temp: 1200C
30L Muffle Furnace:
– Power: 5000W
– Voltage: 3800V/50Hz – 2Phase/N/Earth
– Packing: 850 x 950 x 939mm
– Unit: 690 x 820 x 730mm
– Nett Weight: 68kg
– Gross Weight: 78kg
– Shipping Volume: 0.76m3
– Chamber Dimensions: 300 x 450 x 205mm
– Chamber Volume: 30L
– Max Continous Temp: 1150C
– Max Temp: 1200C
