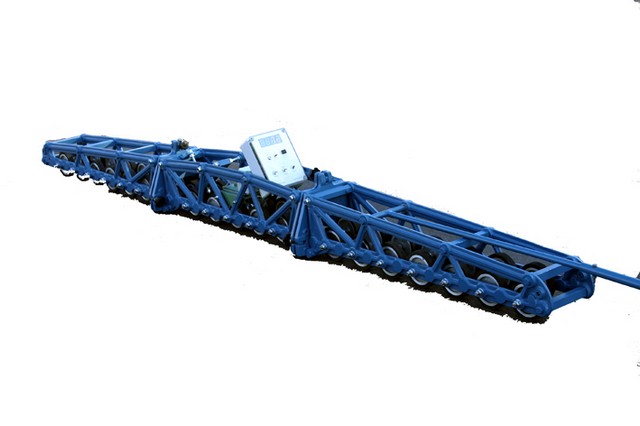

Mobile Rolling Straight Edge (3 Meter)
Mobile rolling straight edges are used to measure and assess the planeness (flatness) of pavement surfaces, such as highways, airport runways, and bridge decks. They detect and record deviations from a perfectly flat surface, indicating high and low areas that may need to be corrected.
-
Function:
The primary function of a rolling straight edge is to measure the surface regularity of pavements. It detects deviations in the surface, such as bumps and dips, and can mark these areas for correction.
-
How it works:
The straight edge is typically mounted on wheels and rolled along the pavement surface. A measuring wheel or sensor detects vertical movement, which is then recorded and can be displayed on a scale or logged for later analysis.
-
Applications:
- Construction Quality Control: They are used to assess the smoothness of newly laid pavements.
- Distress Evaluation: They can also be used to evaluate the surface irregularities of existing pavements.
- Remedial Work: The data collected can help identify areas that need to be ground down, filled, or re-rolled.
- Compliance Assessment: They can be used to ensure that pavements meet specified quality standards.
- Construction Quality Control: They are used to assess the smoothness of newly laid pavements.
-
Benefits:
- One-person operation: Many models are designed to be rolled by a single operator.
- Accuracy: They can detect even small deviations in the surface.
- Data logging: Results can be logged and downloaded for analysis.
These results can be logged and down loaded at a later stage on a computer.
- One-person operation: Many models are designed to be rolled by a single operator.
Our NEW Mobile Rolling Straight Edge PLUS has GPS and a USB port for downloading of data to a USB cable.
Click Below for Manual:
