Hand soil augers are primarily used for shallow soil sampling and digging holes manually, making them ideal for tasks like post-hole digging, environmental research, and locating underground materials before larger drilling projects. They are particularly well-suited for unconsolidated soil types like sand and silt, and can also be used for tasks like unclogging drains and drilling fishing holes in ice.
Here’s a more detailed overview:
Key Uses:
-
Soil Sampling:Hand augers are a simple and portable method for obtaining soil samples for various purposes, including soil classification, profile inspection, and environmental studies.
-
Post-Hole Digging:They are commonly used for making holes for fence posts, poles, and other structures.
-
Locating Underground Obstacles:Before using larger drilling equipment, hand augers can help locate underground materials that might damage tools.
-
Environmental Research:They are valuable for soil profiling, geological investigations, and sampling in environmental contexts.
-
Other Uses:Hand augers can also be used for unclogging drains, drilling holes in ice for fishing, and other tasks where manual, shallow digging is needed.
Advantages:
- Portability and Simplicity: Hand augers are easily portable and require no mechanical power, making them suitable for use in remote areas or situations where electricity is unavailable.
- Cost-Effective: They are generally less expensive than powered drilling equipment.
- Minimal Disturbance: They can provide disturbed samples of soil for analysis, which is sufficient for many applications.
Limitations:
-
Depth Limitation:Hand augers are generally limited to shallow depths, typically less than 20 feet (6 meters).
-
Soil Type:They work best in unconsolidated soils like sand, silt, and soft clay. Stiff clays, hard materials, and gravels can be difficult to drill through.
-
Physical Effort:Using a hand auger requires manual labor, which can be tiring, especially for deeper holes.
A hand auger is a versatile tool used to carry out a range of shallow digging necessary in obtaining soil samples, making postholes, drilling fishing holes in ice, environmental construction, mining, opening clogged drains and locating underground materials that may potentially halt drilling and damage powered tools.

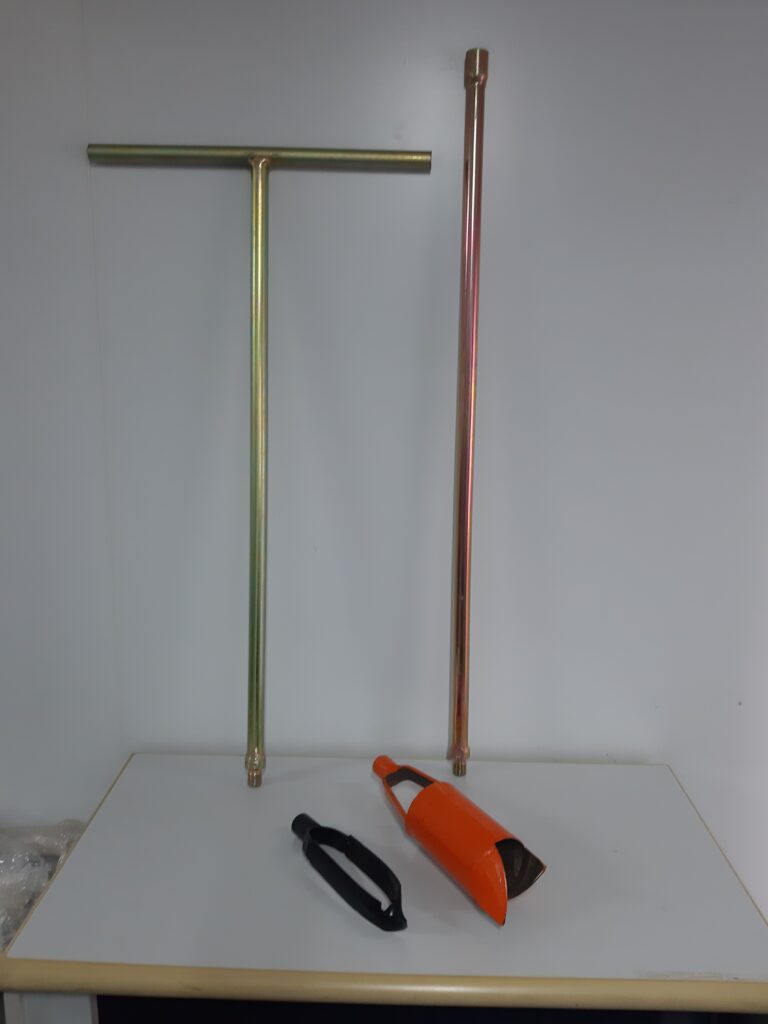

Bucket Auger (Thompson type)
A highly versatile general purpose auger, especially effective in hard and dry soils. These augers will drill into highly compacted soils with little difficulty.
- Standard thread coupling
- Tough, high-quality steel bail and barrel
- New design high carbon spring steel bits
- Unbeatable and unbreakable
- Available in: 75mm, 100mm & 150mm
Dutch Auger (Edelman type)
The most effective auger in moist and wet soils and the only auger for drilling in wet clays.
- Standard thread coupling
- Tough plate-steel head
- Machine stamped and formed
- Individually hand finished
- Available in: 65mm
T-Handles
- Standard thread coupling
- Steel shaft
- Available in: 900mm & 1.2m

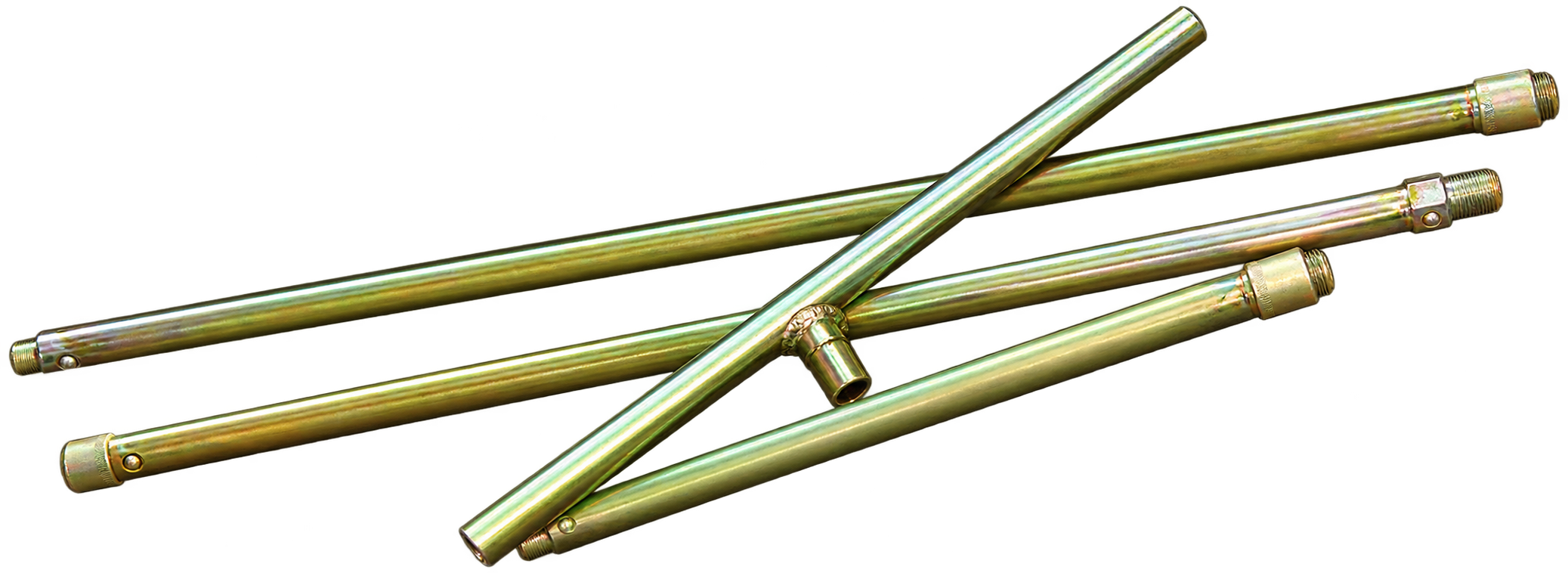

Extension rods
- Standard thread couplings
- Strong square-section rod to facilitate uncoupling.
- Available in: 500mm, 1m & 1.2M
