Bitumen penetrometers are used to determine the consistency and hardness of bitumen by measuring the penetration depth of a standard needle under controlled conditions of load, time, and temperature. This test is crucial for classifying bitumen into different grades and evaluating its performance in construction applications like roads and runways.
Here’s a more detailed explanation:
- Penetration Depth: The penetrometer measures how far a standard needle penetrates the bitumen sample under specific conditions.
- Consistency: The penetration value indicates the consistency of the bitumen, with higher penetration values suggesting softer and more fluid bitumen.
- Hardness: A lower penetration depth indicates a harder, more solid bitumen.
-
1. Bitumen Sample Preparation:
The bitumen is heated to a specific temperature and poured into a sample container.
-
2. Needle Application:
A standard needle, with a defined weight and geometry, is released onto the surface of the bitumen sample.
-
3. Penetration Measurement:
The depth of the needle’s penetration is measured, typically in tenths of a millimeter, under controlled conditions of load and time (e.g., 100 grams load for 5 seconds).
-
4. Data Analysis:
The penetration value is then used to classify the bitumen and assess its performance in various applications.
-
Bitumen Grading:
Penetration tests are widely used to classify bitumen into different grades based on its hardness and consistency.
-
Construction Materials Evaluation:
They help evaluate the performance of bitumen in road construction, pavement engineering, and other applications.
-
Quality Control:
Penetration testing ensures that bitumen meets specific quality standards and specifications.
-
Research and Development:Bitumen penetrometers are used in research to study the properties and behavior of bitumen under different conditions.

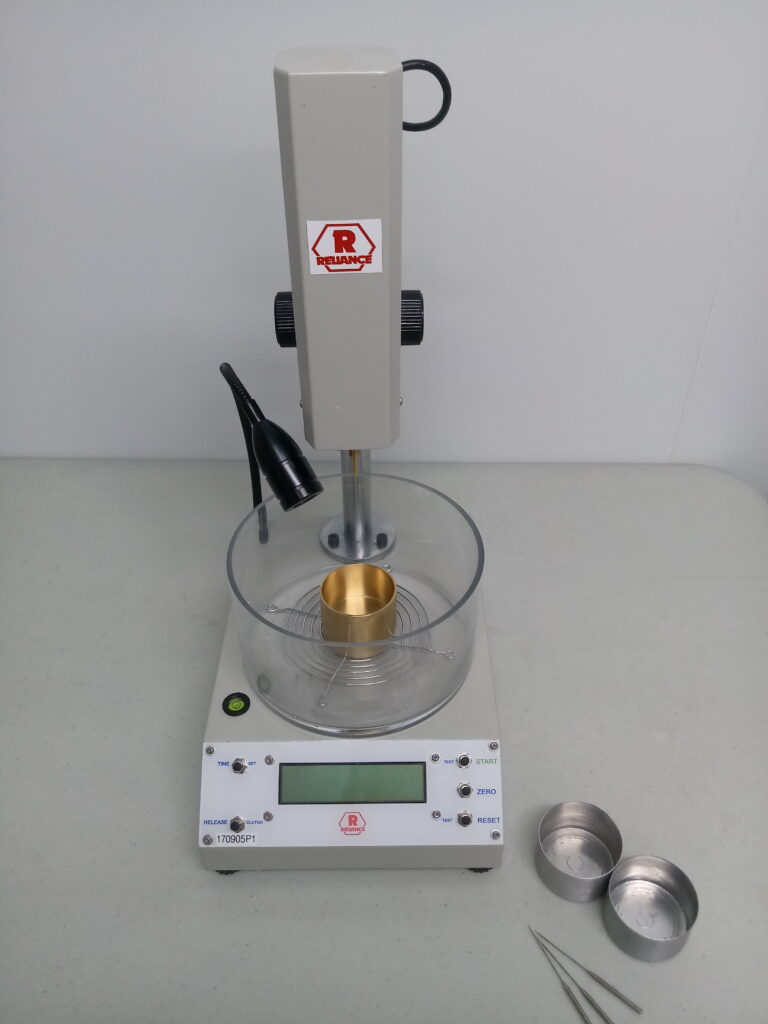

Features:
- LED Spot light, control circuit inside base, time display and penetration display windows and function key on display panel
- Needle rod release
- Fine Adjustment knob
- Time Setting: 5-30 seconds
- Max needle penetration: 500
- Displace measure range: 0-30mm
- Measuring accuracy: +- 1% (0-10mm) / 10.1-30mm)
- Standard Neele: +-2.5g/0.05g
- Sample Vessel: 70mm dia
- Power Supply: 220V AC 50Hz
Supplied with one needle and one cup.
