RADIATION METER

Radiation meters, also known as survey meters or radiation detectors, are used to measure and detect various types of radiation, including alpha, beta, and gamma radiation. They are crucial tools in a variety of applications, from monitoring radiation levels in nuclear facilities and hospitals to detecting contamination in the environment.

Here’s a more detailed overview:
  • Measuring Radiation Levels:

    Radiation meters measure the intensity or dose rate of radiation, providing information about the amount of radiation present in a specific area.

  • Locating Radioactive Sources:

    They can help pinpoint the location of radioactive sources, either by detecting the presence of radioactive material or by following alarms from other radiation monitoring devices

  • Evaluating Contamination:

    Radiation meters are used to assess radiation contamination on surfaces, equipment, personnel, or even in the environment

  • Detecting Different Types of Radiation:

    They can be designed to detect specific types of radiation, such as alpha, beta, or gamma radiation, or a combination thereof

  • Applications:
    • Nuclear Power Plants: Monitoring radiation levels in reactors and surrounding areas
    • Hospitals: Assessing radiation levels in medical imaging and therapy departments
    • Research Facilities: Measuring radiation levels in laboratories that utilize radioactive materials
    • Environmental Monitoring: Detecting radioactive contamination in the environment
    • Emergency Response: Localizing radioactive sources and assessing contamination in the aftermath of nuclear incidents
    • Industrial Applications: Monitoring radiation levels in various industrial processes involving radioactive materials
    • Radiation Protection: Ensuring the safety of individuals working with radiation sources

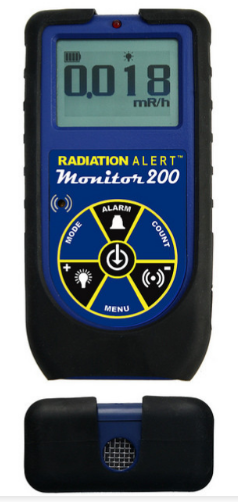

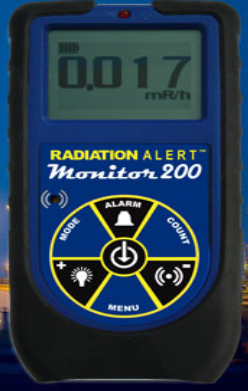

The Monitor 200 measures alpha, beta, gamma, and x-rays. Its digital display shows readings in your choice of CPM, CPS, μSv/hr, mR/hr, or in accumulated counts. It has a digital, easy to read backlit display, a red count light, and a beeper that sounds with each count detected. This radiation detector device also includes an adjustable timer and a loud, customizable alert.



With the Free Radiation Alert Observer BLE app from the Google App Store, you can display the readings from your detector, label sample readings and descriptions, take timed counts, append GPS data and send your saved survey file. Alarms set on the instrument will also activate on your Android device.

The Free Observer USB software (Windows® only) reads in Total Counts, CPM, µR/hr, mR/hr, CPS, µSv/hr, and has the ability to collect and log data, set alarms, set timed counts, set the calibration date and settings, and generate reports.

 Applications & Uses: Checking accelerator & x-ray shielding for leakage, industrial gauges containing Cesium-137, Locating Sources, Personal protection, General surveying

There are many industries that widely use radiation detector device, like medicine, archaeology, agriculture, mining, etc.



Specifications:

Halogen-quenched GM tube with thin mica end window. Mica window density 1.5-2.0 mg/cm2. Effective window diameter is .360 inch. Side wall is .012 inch thick.

OPERATING RANGE mR/hr – .001 (1µR) to 200 mR/hr
µSv/hr – .01 to 2000
CPM – 0 to 235,400
CPS – 0 to 3923
Total Counts – 1 to 9,999,000 counts

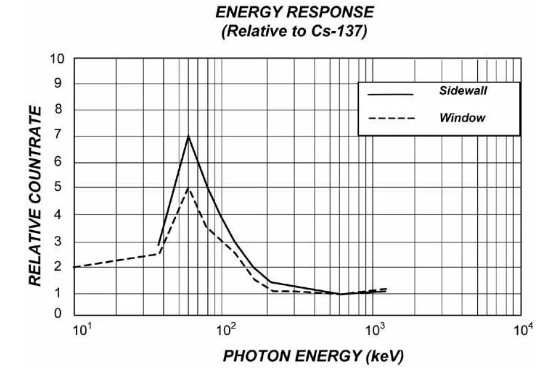

ENERGY SENSITIVITY 1070 CPM/mR/hr referenced to Cs137
Detects alpha down to 2.5 MeV; typical detection efficiency at 3.6 MeV is greater than 80%.
Detects beta at 50 keV with typical 35% detection efficiency.
Detects beta at 150 keV with typical 75% detection efficiency.
Detects gamma and x-rays down to 10 keV typical through the window, 40 keV minimum through the case.
(Ref to Cs137)
ACCURACY OF RADIATION DETECTOR DEVICE Referenced to Cs137
Typically ±15% from factory, ±10%
ANTI-SATURATION Readout will OVERRANGE in radiation fields as high as 100 times the maximum reading.
SELECTABLE ALERT SET RANGE mR/hr .001 – 100 and CPM 1 – 350,000. Pulsating beeper sounds the alert. Adjustable alert levels are used for mR/hr / CPM, and µSv/hr / CPS. 70db @ 1m. Alarm will sound when in Timer Mode when set alarm threshold is reached.
DISPLAY Graphic LCD with Backlight.
OUTPUTS USB for use with Free Observer USB Software for PCs
Bluetooth Option Additoinal: Wirelessly connects the instrument with an Android mobile device for use with Free Observer BLE App
COUNT LIGHT Red LED flashes with each count
AUDIO INDICATOR Sounds with each count (can be switched off for silent operation)
POWER REQUIREMENTS USB Power or Two (2) AA alkaline batteries (included). Approx. 800 hrs @ background.
TEMPERATURE RANGE -10° to +50°C (14° to 122°F)
HUMIDITY 10% to 70% Non-Condensing.
SIZE 140 X 68 X 33 mm
WEIGHT 181 g
