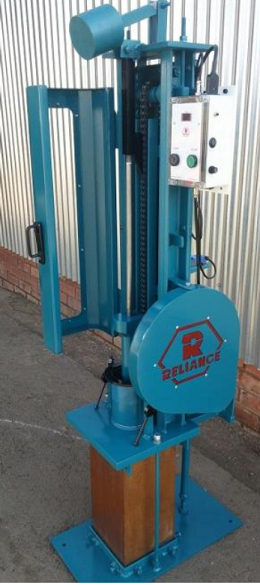

MARSHALL COMPACTOR

Wooden pedestal manufactured in compliance with SANS standards with base connections to secure the machine to the floor. Tubular steel frame housing the driving mechanism of the compaction hammer.Steel base plate (compaction anvil for hammer, mould clamping system.



Marshall Compactors compact hot mix asphalt test specimens for Marshall stability and flow testing, density/void determinations, and specific gravity.

Wooden pedestal manufactured in compliance with SANS standards with base connections to secure the machine to the floor.
Steel base plate (compaction anvil for hammer); mould clamping system with quick couplings. Compaction Hammer of 4 540 g ± 10g raised to a height of 460 mm ± 3 mm and allowed to drop. Electric control panel with automatic blow counter for pre-setting of the required number of blows and automatic stop.
The compactor is capable of applying 60 blows/min ± 10 blows/min.
Safety protection made of steel complete with relevant micro-switches.



Specifications:

Dimensions: +/- 400x400x1400 mm
Power: 230 V, 60 Hz, 1 ph
Weight: 80 kg
